JTRON Pv Solar Panel Connector Male Female Diode 740379961129 Male/female 1000V 20A

( Brand: Jtron ), ( Part Type: Panel Connector ), ( Model Name: Photovoltaic 10 Pcs ), ( Color: Black ), ( Power Source Type: Solar Energy ), ( Material: Copper ), ( UPC: 740379961129 ), ( Package Dimensions Lxwxh: 9.49x6.5x0.63 Inches ), ( Weight: 0.51 Pounds )

Review JTRON Pcs Pv Solar Panel Connector Male/female 20a Built in Diode Inch

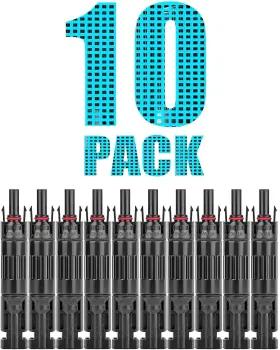

Introducing the JTRON 10-piece Solar Panel Connector Set (model number: 740379961129), an essential accessory for solar energy systems. This set includes 5 male and 5 female connectors, each designed to ensure a reliable and efficient connection between solar panels and other components.

Each connector features a high voltage rating of 1000 volts and a current capacity of 20 amperes. The built-in diodes prevent the reverse flow of current, ensuring the safety and proper functioning of your solar energy system.

The connectors are made of high-quality materials that can withstand the harsh environmental conditions encountered in outdoor solar installations. The robust construction ensures that they maintain their structural integrity despite exposure to extreme temperatures, UV radiation, and other environmental stressors.

The male and female connectors have a secure screw-lock mechanism that ensures a strong and stable connection between the components. This feature reduces the risk of loose connections, which can lead to safety hazards and decreased system performance.

The JTRON 740379961129 Solar Panel Connector Set is a must-have for anyone building or maintaining a solar energy system. Its high voltage and current capacity, coupled with the built-in diodes and robust construction, make it an indispensable tool for ensuring the safety and optimal performance of your solar energy setup.

In summary, the JTRON 10-piece Solar Panel Connector Set (model number: 740379961129) is a high-performance and reliable accessory for solar energy systems. With a voltage rating of 1000 volts and a current capacity of 20 amperes, these connectors can handle the demands of even the most powerful solar installations. The built-in diodes ensure safe and efficient power flow, while the secure screw-lock mechanism provides a stable connection between components. Add this set to your solar energy toolkit and enjoy the peace of mind that comes with knowing your system is safe and performing at its best.

JTRON 10 pcs PV Solar Panel Connector: A Comprehensive Analysis

The JTRON 740379961129 10 pcs PV solar panel connector is a product designed for use in solar energy systems. These connectors come with built-in diodes and support voltage up to 1000V and current up to 20A. In this analysis, we will discuss the potential advantages and disadvantages of purchasing this product.

1. Safety: The built-in diodes prevent reverse current flow, which is essential for protecting the solar panels and other components from damage.

2. Durability: JTRON connectors are designed to withstand harsh weather conditions, ensuring long-term reliability and performance.

3. Universal Compatibility: These connectors can be used in various types of solar panel systems due to their universal compatibility.

4. Cost-Effective: Purchasing these connectors in bulk (10 pcs) can save money compared to buying them individually.

5. Easy Installation: The connectors are easy to install, reducing the overall installation time and effort for solar panel systems.

1. Quality Concerns: Some customers have reported issues with the quality of the connectors, including issues with the diodes not working correctly.

2. Limited Current Capacity: With a maximum current capacity of 20A, these connectors may not be suitable for larger solar panel systems.

3. Potential Compatibility Issues: Although marketed as universal, there have been reports of compatibility issues with specific solar panel brands or models.

4. Lack of Visual Indicators: The connectors do not have any visual indicators to show when they are properly connected, which can lead to errors during installation.

The JTRON 740379961129 10 pcs PV solar panel connector offers several advantages, such as built-in diodes, durability, and cost-effectiveness. However, it also comes with some disadvantages, like potential quality concerns, limited current capacity, and potential compatibility issues.

If you are setting up a small to medium-sized solar panel system, these connectors can be a cost-effective and reliable solution. However, for larger systems or those requiring higher current capacity, it may be worth considering other options. As always, it is essential to thoroughly research any solar panel components before making a purchase to ensure they meet your specific requirements.

For those looking for a cost-effective, reliable, and easy-to-install solar panel connector solution for small to medium-sized solar panel systems, the JTRON 740379961129 10 pcs PV solar panel connector could be a suitable choice. However, it is crucial to carefully consider the potential compatibility issues and ensure the connectors meet the specific requirements of your solar panel system.

Details:

Specifications, Insulation Material PPO/PC/ABS, Copper Tin Plated, Rated voltage 1000V DC, Test 6KV 50Hz,1Min, Resistance 1m, Pollution Degree 2, Safety Class II, Ambient Temperature 40 85, Highest 125, Flame UL94-V0, Locking System Snap-in, Insertion / Withdrawal Force 50N, Waterproof IP68 suitable for outdoor harsh environments, Suitable Cables 2.5mm AWG14 , 4mm AWG12 6mm AWG10 Package include: 10x 20A Built-in diode Connectors, PPO INSULATION FLAME RETARDANT MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat 1.for a long time; WATERPROOF RING on connection is perfect to seal out water dust prevent corrosion. Contacts for the connector are copper coated with tin easy solder adhesion. Solar Diode Connector The 20A Connectors, Connectors are used for parallel connection between solar panels, so will maintain the voltage of your panel configuration to match On/Off Grid System. Double seal rings for better waterproof effect, Low transition resistance.

Practical and easy connector used between Solar panel switch box to prevent the reversal of current. TUV approved Quick and easy connection of the solar cables to photovoltaic system solar panels, converters. Function: The rectifier circuit only allows the current to pass in a single direction, and blocks it reverse direction prevent back flow from burning photovoltaic panel.
