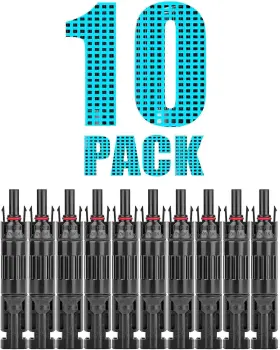

JTRON Pv Solar Panel Connector Male Female Diode 740379961136 Male/female 1000V 30A

( Brand: Jtron ), ( Part Type: Panel Connector ), ( Model Name: Photovoltaic 10 Pcs ), ( Style: 30a ), ( Color: Black ), ( Power Source Type: Solar Energy ), ( Material: Copper ), ( UPC: 740379961136 ), ( Package Dimensions Lxwxh: 6.57x6.42x2.68 Inches ), ( Weight: 0.5 Pounds )

Review JTRON Pcs Pv Solar Panel Connector Male/female 30a Built in Diode Inch

Introducing the JTRON 740379961136 10pcs PV Solar Panel Connector Set, a high-performance solution for all your solar panel wiring needs. This set includes 10 pieces, each comprised of one male and one female connector. Both connectors are engineered to deliver superior electrical conductivity, ensuring optimal energy transfer from your solar panels to your charge controller or battery.

Each connector boasts a voltage rating of 1000V and a current rating of 30A. This high capacity makes them suitable for use with larger solar panel systems, providing reliable and efficient power transmission. Moreover, these connectors come with built-in diodes, ensuring that current flows in the correct direction, preventing potential damage to your system.

The JTRON solar panel connectors are designed with durability in mind. The housing is made from high-quality materials that can withstand harsh environmental conditions. The connectors feature a secure locking mechanism that ensures a strong and reliable connection between the panels and the charge controller or battery.

Installation is a breeze with these connectors. The male and female connectors can be easily identified by their distinct shapes, ensuring proper alignment during installation. The connectors also come with pre-attached wires, reducing the need for additional wiring and saving you time and effort during installation.

In summary, the JTRON 740379961136 10pcs PV Solar Panel Connector Set is an essential accessory for anyone looking to build or expand their solar power system. With their high voltage and current ratings, built-in diodes, and durable design, these connectors offer reliable, efficient, and safe power transmission while ensuring a strong and secure connection between your solar panels and charge controller or battery.

JTRON 10pcs PV Solar Panel Connector: An In-depth Analysis

The JTRON 740379961136 10pcs PV Solar Panel Connector is a set of male and female solar panel connectors designed for photovoltaic systems. These connectors come with built-in diodes and can handle a voltage of up to 1000V and a current of up to 30A. In this analysis, we will discuss the potential advantages and disadvantages of purchasing these solar panel connectors.

1. High Voltage and Current Capacity: The JTRON connectors can handle a high voltage of 1000V and a current of 30A, making them suitable for large solar panel systems.

2. Built-in Diodes: The connectors feature built-in diodes, which help protect the solar panels against reverse current flow, thus preventing potential damage.

3. Durable Construction: The connectors are designed with a robust and weather-resistant material, ensuring they can withstand various environmental conditions.

4. Cost-Effective: Buying these connectors in bulk (10pcs) can lead to significant cost savings compared to purchasing them individually.

1. Size: The connectors are relatively large compared to standard connectors, which might require additional space when installing the solar panels.

2. Limited Compatibility: These connectors are designed specifically for solar panel applications and might not be suitable for other electrical installations.

3. Manual Crimping: The connectors require manual crimping to secure the wires, which can be time-consuming and labor-intensive.

The JTRON 740379961136 10pcs PV Solar Panel Connector offers several advantages, such as high voltage and current capacity, built-in diodes, durable construction, and cost-effectiveness. However, it also presents some disadvantages, including its size, limited compatibility, and the need for manual crimping.

Based on the analysis, if you are in the market for solar panel connectors with high voltage and current handling capacity, built-in diodes, and cost savings, then the JTRON 10pcs PV Solar Panel Connector might be an excellent choice for your solar panel installation project. However, consider the potential drawbacks, such as the larger size and the need for manual crimping, before making your final decision.

Details:

Contacts for the connector are copper coated with tin easy solder adhesion. Solar Diode Connector The 30A Connectors, Connectors are used for parallel connection between solar panels, so will maintain the voltage of your panel configuration to match On/Off Grid System. TUV approved Quick and easy connection of the solar cables to photovoltaic system solar panels, converters. Function: The rectifier circuit only allows the current to pass in a single direction, and blocks it reverse direction prevent back flow from burning photovoltaic panel.

Practical and easy connector used between Solar panel switch box to prevent the reversal of current. Double seal rings for better waterproof effect, Low transition resistance. Specifications, Insulation Material PPO/PC/ABS, Contact Copper Tin Plated, Rated voltage 1000V DC, Test 6KV 50Hz,1Min, Resistance 1m, Pollution Degree 2, Safety Class II, Ambient Temperature 40 85, Highest 125, Flame UL94-V0, Locking System Snap-in, Insertion / Withdrawal Force 50N, Waterproof IP68 suitable for outdoor harsh environments, Suitable Cables 2.5mm AWG14 , 4mm AWG12 6mm AWG10 Package include: 10x 30A Built-in diode Connectors, PPO INSULATION FLAME RETARDANT MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat 1.for a long time; WATERPROOF RING on connection is perfect to seal out water dust prevent corrosion.

specifications solarparley:

• brand: Jtron
• part type: Panel Connector
• model name: Photovoltaic 10 Pcs
• style: 30a
• color: Black
• power source type: Solar Energy
• material: Copper
• upc: 740379961136
• package dimensions lxwxh: 6.57x6.42x2.68 Inches
• weight: 0.5 Pounds

returns solarparley:

• policy: No Returns

offer solarparley:

• sold: 0
• options: Ship-to-home
• availability: In Stock
• started: December 18, 2025
• quantity: 4

general solarparley:

• Alternative Energy Supplies > Solar Power Supplies > Solar Panels Kits
• condition: New

shipping solarparley:

• class: Standard
• service: Standard
• transit: 4-8 Days
• cost: $0.00
• type: Fixed

payments solarparley:

• credit card: Discover
• other
• wallet: Apple-pay

seller solarparley:

• city: Casper, Wyoming
• # reviews: 786
• rating: 100.0%
